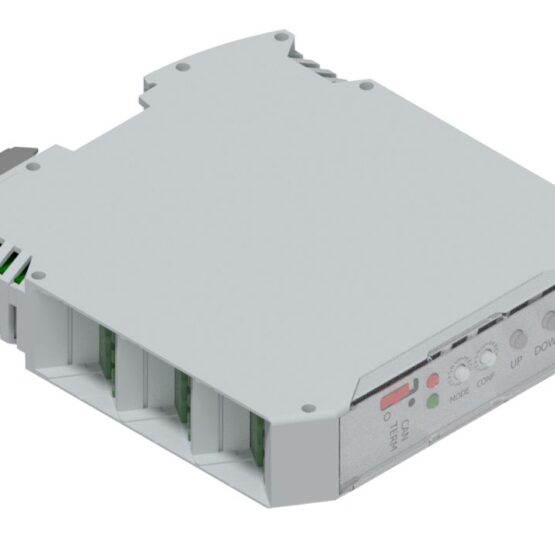

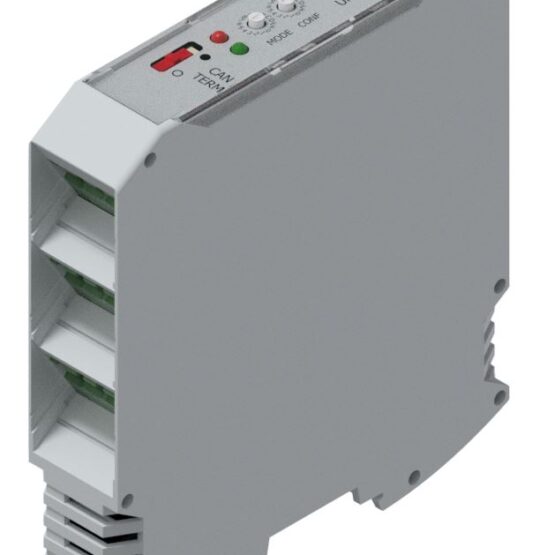

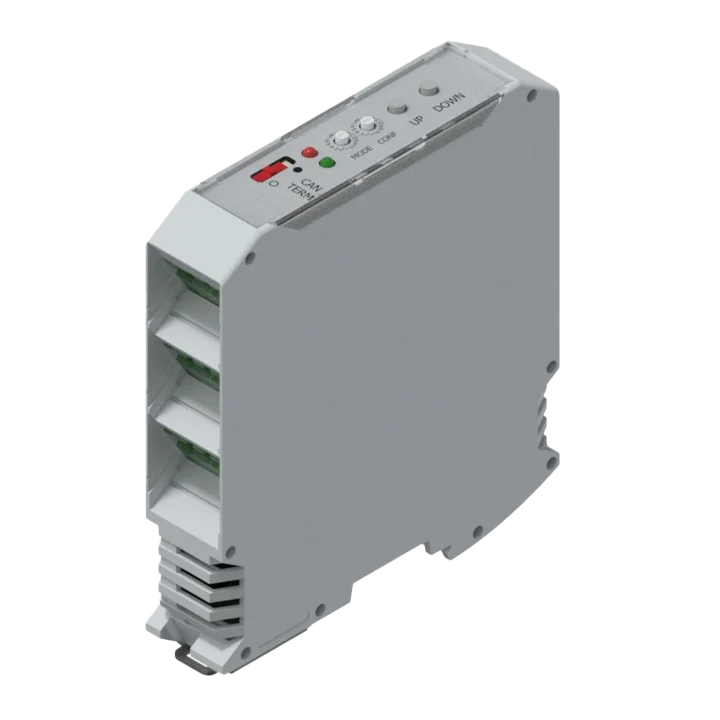

CAN RC transmitter module
The CAN RC Transmitter Module reads CAN lever information (e.g. speed or azimuth) on the CANbus and converts this information to current level settings of the 2 DAC outputs.
The device offers flexibility of application with 4 predefined modes of operation for speed and 1 mode of operation for azimuth. All modes have configurable parameters that define the transfer functions for speed and azimuth. The device also allows for configuration via the CANbus in order to get more complex configuration of up to 12 points.
Specs
- Adjustable CANOpen/I-conversion circuit
- 2 isolated mA outputs
- 4 relays outputs provide additional signaling
- Large power supply range (24VDC±30%)
- ‘Power-on’ indication (green LED)
- ‘Fault’ indication (red LED)
- Mounted on a DIN-rail according EN50022
- CE-approved according EN60945
Options
- 4 predefined modes of operation
- Adjustable and configurable with hardware buttons
- Adjustable and configurable via CANopen
- Separate enable or disable DAC output 2
